Efficiency and precision are crucial in today’s trawling operations. DynIce Data represents a technological advancement in sonar-based data transmission and has already become standard equipment on more than 100 trawlers worldwide. With a proven lifespan of over five years and significant operational advantages compared to traditional steel cables, DynIce Data sets a new benchmark for modern fisheries.

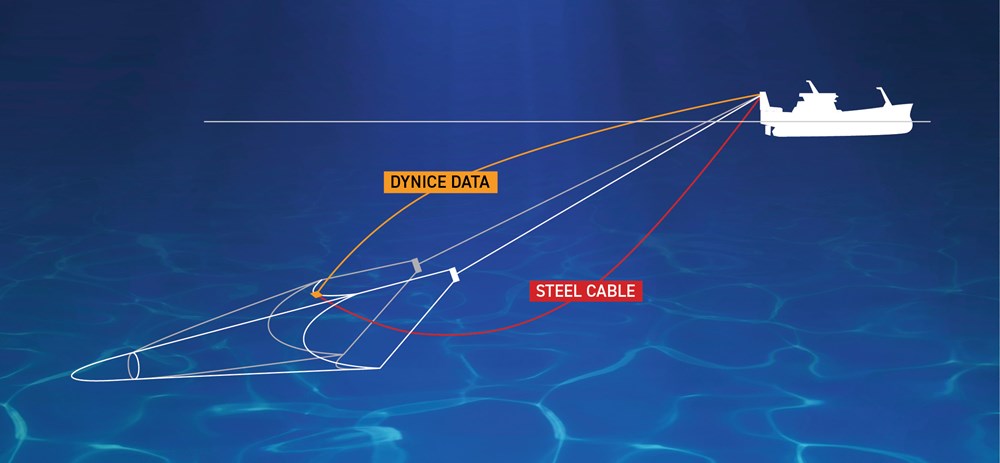

DynIce data trawl.jpg

photo: Hampidjan.com

Our userlist

HAM 0125-5 DynIce data users worldwide A3.jpg


Why Choose DynIce Data?

DynIce Data is designed to ensure optimal signal transmission from the trawl’s headline to the bridge while providing several operational benefits that enhance reliability and reduce maintenance costs.

  • Superior Signal Strength and Precision

With a coaxial copper conductor protected by DynIce Dux Dyneema® special rope, the cable ensures minimal signal loss and sharp sonar imaging. This allows for better control of trawl positioning and improved efficiency in fishing operations.

  • Increased Trawl Opening and Enhanced Catch Efficiency

Unlike heavy steel cables, DynIce Data has a low weight and provides buoyancy during towing, lifting the headline and increasing the vertical opening of the trawl. Tests have shown that trawlers using DynIce Data have achieved up to 10 meters of additional vertical opening, significantly expanding the fishing area.

  • Lightweight and Reduced Equipment Strain

DynIce Data weighs significantly less than steel cables. A 2,000-meter steel cable weighs 880 kg in air and 676 kg in seawater, whereas the equivalent DynIce Data cable weighs only 326 kg in air and 76 kg in seawater. This reduces strain on winches and other components, extending the lifespan of onboard equipment.

  • Maintenance-Free and Long-Lasting

Unlike steel, DynIce Data does not corrode and requires no lubrication. The cable has a proven lifespan of over five years, whereas steel cables often need replacement within one to two years.

  • Proven Performance on Leading Trawlers

DynIce Data has been tested and successfully implemented on multiple large vessels. The Faroese trawler Tróndur í Gøta operates with a 2,700-meter installation, and skipper Frits Thomsen confirms that the image on the sonar screen is sharp, with excellent signal quality. On the pelagic trawler Beitir, the cable increased the vertical opening of the trawl by 10 meters, providing an additional 2,000 square meters of fishing area.

Screenshot 2025-03-07 at 15.25.35.png

photo: Hampidjan.com

DynIce Data vs. Steel Cable – A Clear Advantage

Feature

DynIce Data

Steel Cable

Weight (2000m in air)326 kg880 kg
Weight (2000m in seawater)76 kg676 kg
Corrosion-resistantYesNo
Requires lubricationNoYes
Lifespan5+ years1–2 years
Increases trawl openingYesNo
Affects trawl doorsNoYes

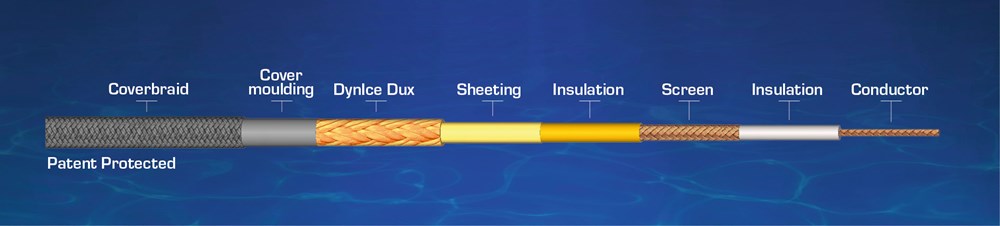

DynIce data cable.jpg

photo: Hampidjan.com
